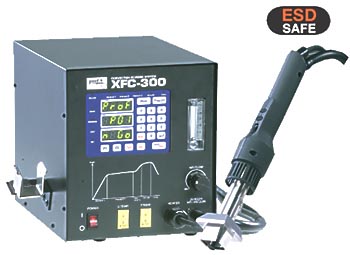

热风式SMT返修装置 XFC-300/301
.jpg)
与预热台组合使用，包括BGA、CSP的SMD返修对应。
.jpg)

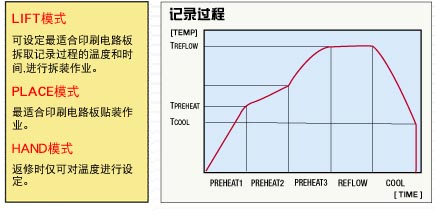

●能设定PREHEAT1、PREHEAT2、PREHEAT3、REFLOW、COOL DOWN 5个区域的记录。
●LIFT、PLACE模式能寄存5个区域,每区域19种设定温度。HAND模式能寄存1种设定温度。
●PID控制、实现精确温度管理。
●手柄处配有热源ON-OFF开关以及真空ON-OFF开关、操作方便。
●配有能预热ON-OFF功能接口。(连接控制线为选购件)
●有锁定功能。
●按COOL键、对全区域冷却。
●自动记录功能。
＊过程记录由5个区域构成。能设定每个区域的温度和时间。
.jpg)
.jpg)
|
型号
|
XFC-300, XFC-301（有自动升降功能）
|
|
额定电压
|
110V, 220V AC 50/60Hz
|
|
耗电量
|
430W, 420W
|
|
电烙铁电压
|
110V AC / 220V AC
|
|
温度控制范围
|
50—550°C
|
|
风量范围
|
5-25升/分
|
|
风量计
|
带风量仪表
|
|
真空吸头
|
内藏于抓取手臂前端
|
|
真空度
|
-0.03MPa (-220mmHg)
|
|
模式种类
|
3种 (Plofile-Normal, Plofile-Auto, HAND)
|
|
温度记录( LIFT、PLACE)
|
5个区域(温度和时间)
|
|
过程记录
|
( Auto, Normal )×19, HAND×1
|
|
绝缘电阻 (500V DC)
|
10MΩ以上
|
|
尺寸
|
本体
|
220mm(不包括电源线)
|
|
电烙铁
|
265(L) ×190(W) ×230(H)mm
|
|
重量
|
本体
|
180g(不包括电源线)
|
|
电烙铁
|
7.6kg(除电源线)
|
|
电烙铁至控制器线长
|
1m
|
|
电源线长
|
1.2m(带地线3芯插头)
|
交换配件
.jpg)
|
XFC系列用加热芯
|
XFC-H
|
|
.jpg)
|
加热器管护套
|
XFC-HP
|
|
.jpg)
|
XFC-200用真空吸盘一套
|
XVCW-SET
|
.jpg)
|
|
.jpg)
|
真空吸盘
|
φ6mm
|
XVCW-6
|
|
φ8mm
|
XVCW-8
|
|
φ10mm
|
XVCW-10
|
.jpg)
|

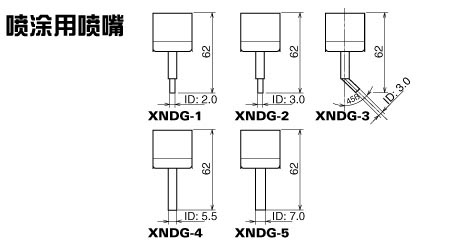

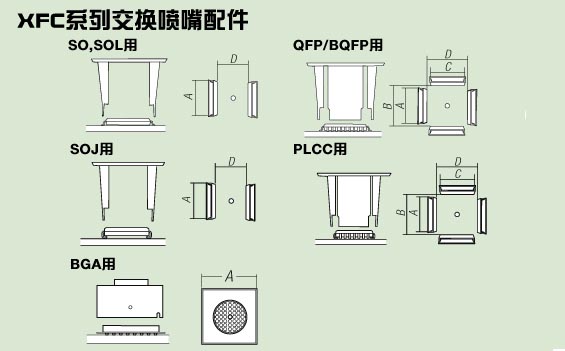

P / N
|
A
|
D
|
Applicable Package
|
|
inch
|
mm
|
inch
|
mm
|
|
XNSG 4.4 ×10
|
0.394
|
10
|
0.189
|
4.8
|
SO16
|
|
XNSG 5.6 ×13
|
0.591
|
15
|
0.224
|
5.7
|
SSOP8T
|
|
XNSG 7.6 ×15
|
0.63
|
16
|
0.283
|
8.2
|
SOL20/26, TSOP20/24
|
|
XNSG 7.6 ×18
|
0.748
|
19
|
0.283
|
8.2
|
TSOP24
|
|
XNSG 7.6×12.7
|
0.742
|
12
|
0.323
|
8.2
|
SOL20, TSOP28
|
|
XNSG 19 ×8
|
0.315
|
8
|
0.748
|
19
|
TSOP32
|
|
XNSG 8.6 ×18
|
0.748
|
19
|
0.343
|
8.7
|
TSOP28/32
|
|
XNSG 18.5 ×12
|
0.748
|
15
|
0.728
|
19.5
|
TSOP40/48
|
|
XNSG 13×28
|
1.142
|
29
|
0.531
|
13.5
|
PSOP44
|
|
XNSG 4.4×5
|
0.917
|
5
|
0.189
|
4.8
|
SO8
|
|
P / N
|
A
|
D
|
Applicable Package
|
|
inch
|
mm
|
inch
|
mm
|
|
XNSG 15 X 8.2
|
0.591
|
15
|
0.323
|
8.2
|
SOJ20
|
P / N |
A
|
Applicable Package
|
|
inch
|
mm
|
|
XNBG 8 ×8
|
0.393
|
10
|
BGA16, BGA25
|
|
XNBG 12 × 12
|
0.551
|
14
|
BGA49, BGA64
|
|
XNBG 13 × 13
|
0.59
|
15
|
BGA49, BGA64
|
|
XNBG 15×15
|
0.669
|
17
|
BGA81, BGA100
|
|
XNBG 17 ×17
|
0.748
|
19
|
BGA121
|
|
XNBG 19 ×19
|
0.787
|
20
|
BGA144, BGA121
|
|
XNBG 23 ×23
|
0.984
|
25
|
BGA169
|
|
XNBG 27 ×27
|
0.142
|
29
|
BGA324, BGA225, BGA289
|
|
XNBG 35 ×35
|
1.457
|
37
|
BGA529, BGA484
|
|
XNBG 38× 38
|
1.575
|
40
|
BGA576, BGA625
|
|
XNBG 40× 40
|
1.654
|
42
|
BGA625, BGA676
|
P / N |
A
|
B
|
C
|
D
|
Applicable Package
|
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
|
XNQG 12 ×12
|
0.472
|
12
|
0.551
|
14
|
0.472
|
12
|
0.551
|
14
|
QFP64,QFP48,QFP80,BQFP28
|
|
XNQG 14 ×14
|
0.591
|
15
|
0.677
|
17.2
|
0.591
|
15
|
0.677
|
17.2
|
SQFP100, TQF100
|
|
XNQG 14 ×20
|
0.591
|
15
|
0.665
|
16.9
|
0.827
|
21
|
0.906
|
23
|
SQFP12, QFP80, QFP100
|
|
XNQG 16 ×16
|
0.629
|
16
|
0.826
|
21
|
0.629
|
16
|
0.826
|
21
|
BQFP100T25, QFPT63
|
|
XNQG 17.5×17.5
|
0.591
|
15
|
0.728
|
18.5
|
0.59
|
15
|
0.728
|
18.5
|
BQFP84
|
|
XNQG 24 ×24
|
0.827
|
21
|
0.953
|
24.2
|
0.827
|
21
|
0.953
|
24.2
|
BQFP132, FQFP176
|
|
XNQG 28×28
|
1.142
|
29
|
1.22
|
31
|
1.142
|
29
|
1.22
|
31
|
QFP128, SQFP208
|
|
XNQG 32 ×32
|
1.22
|
31
|
1.315
|
33.4
|
1.22
|
31
|
1.315
|
33.4
|
BFP184T, FQFP408
|
|
XNQG 37 ×37
|
1.22
|
31
|
1.457
|
37
|
1.22
|
31
|
1.457
|
37
|
BQFP196
|
|
XNQG 40 ×40
|
1.535
|
39
|
1.654
|
42
|
1.535
|
39
|
1.654
|
42
|
BQFP244
|
P / N |
A
|
B
|
C
|
D
|
Applicable Package
|
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
|
XNPG 7.3×12.5
|
0.272
|
6.9
|
0.354
|
9
|
0.272
|
6.9
|
0.551
|
14
|
PLCC 7.3 X 12.5
|
|
XNPG 11.5×11.5
|
0.394
|
10
|
0.512
|
13
|
0.394
|
10
|
0.512
|
13
|
PLCC 28
|
|
XNPG 11.5×14
|
0.591
|
15
|
0.591
|
15
|
0.394
|
10
|
0.512
|
13
|
PLCC 11.5 X 14
|
|
XNPG 17.5×17.5
|
0.591
|
15
|
0.728
|
18.5
|
0.591
|
15
|
0.728
|
18.5
|
PLCC 44
|
|
XNPG 20×20
|
0.748
|
19
|
0.827
|
21
|
0.748
|
19
|
0.827
|
21
|
PLCC 52
|
|
XNPG 25 ×25
|
0.945
|
24
|
1.024
|
26
|
0.945
|
24
|
1.024
|
26
|
PLCC 68
|
|
XNPG 30×30
|
1.142
|
29
|
1.22
|
31
|
1.142
|
29
|
1.22
|
31
|
PLCC 84
|
